Stanley Dura-Glide 5200/5300

Primary identifier: Stanley Dura-Glide 5200 / 5300 · Status: active

Parts, controls, motors, encoders, power accessories, sensors, switches, mechanical components, and identification references for Stanley Dura-Glide 5200/5300 sliding systems.

Automatic sliding door
System type
Automatic Sliding
Indexed components
27 indexed components
Control generations
MC521 Classic · MC521 Pro · iQ
Commonly confused with
Stanley Dura-Glide 2000/3000, Stanley DuraFit Telescopic
Last reviewed
Aug 15, 2026

Parts & Components

Indexed components for this system. They are identification and search cues — verify revision and configuration before ordering.

27 components

Higher-priority identification

Controls

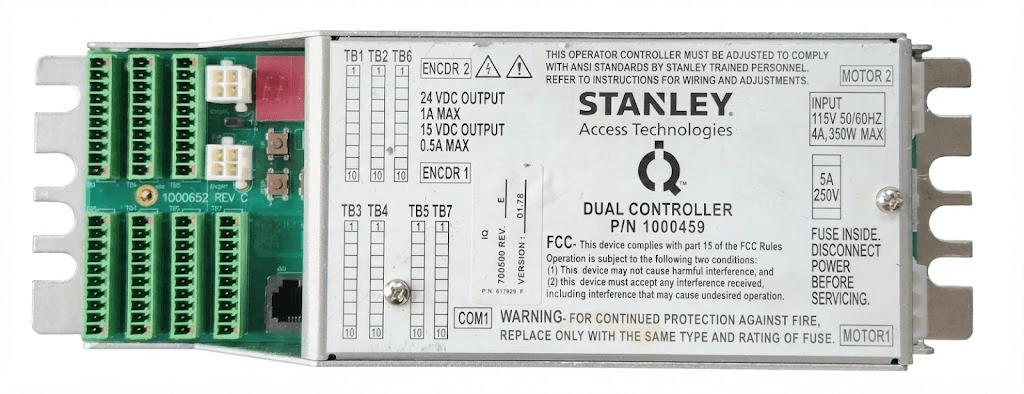

  • Stanley Access Technologies 1000459 iQ Dual Controller
    1000459

    iQ Dual Controller

    iQ dual controller face PN

    Controls · iQ dual

    Identification

    Face P/N on the dual-motor iQ board (Motor 1 and Motor 2). OEM dual kit 314321 may ship this board. Owner-identified 314315 Magic-Force / Bifold kit photo also shows a Dual Controller housing labeled 1000459 — photograph the kit number and the face label; they are not the same SKU.

    Do not confuse with: Not single 1000459-1; not an MC521 yellow-face or Pro board.

    Also documented with: Dura-Glide 2000/3000 · Compatibility not implied

    Source · AutoDoor Atlas field photo

    Sources & notes

    AutoDoor Atlas field photo: Original AutoDoor Atlas photograph of the labeled assembly. Face P/N and generation notes from owner field identification of Dura-Glide / Magic-Force controls. Verify the header or operator plates and harness before treating as a drop-in.

    Listed for Dura-Glide iQ-generation controls. 5200/5300 owner list includes kit 314321; 2000/3000 parts-book index lists the same kit. Confirm header model and harness.

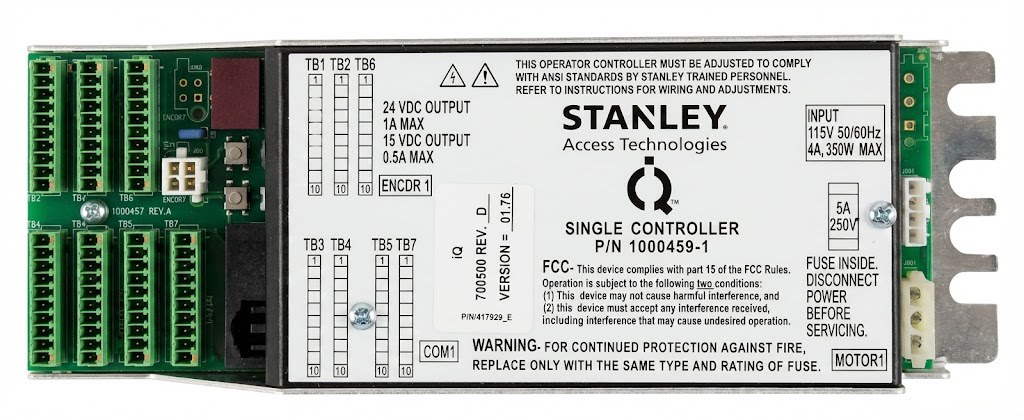

  • Stanley Access Technologies 1000459-1 iQ Single Controller
    1000459-1

    iQ Single Controller

    iQ single controller face PN

    Controls · iQ single

    Identification

    Face P/N on the single-motor iQ board. Not interchangeable with dual 1000459 from a title match.

    Do not confuse with: Not dual 1000459 / kit 314321; not an MC521 board.

    Also documented with: Dura-Glide 2000/3000 · Compatibility not implied

    Source · AutoDoor Atlas field photo

    Sources & notes

    AutoDoor Atlas field photo: Original AutoDoor Atlas photograph of the labeled assembly. Face P/N and generation notes from owner field identification of Dura-Glide / Magic-Force controls. Verify the header or operator plates and harness before treating as a drop-in.

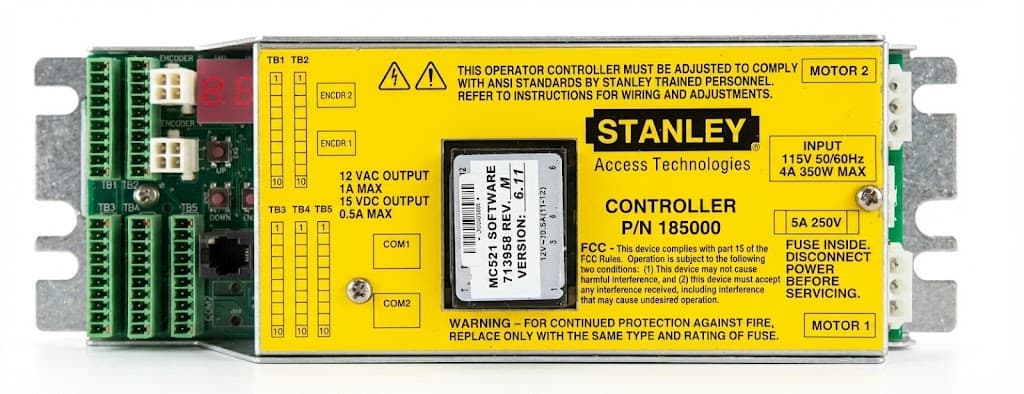

  • Stanley Access Technologies 185000 MC521 Classic Dual Controller
    185000

    MC521 Classic Dual Controller

    MC521 Classic dual (yellow face)

    Controls · MC521 Classic dual

    Identification

    Yellow-face dual controller, face P/N 185000. R185000SL is the 2016 DCUSA slide listing — search cue only, not proof of drop-in fitment on every Dura-Glide header.

    Do not confuse with: Not single 185000-1; not MC521 Pro 185101; not iQ 1000459.

    Also documented with: Dura-Glide 2000/3000 · Compatibility not implied

    Source · AutoDoor Atlas field photo

    Sources & notes

    AutoDoor Atlas field photo: Original AutoDoor Atlas photograph of the labeled assembly. Face P/N and generation notes from owner field identification of Dura-Glide / Magic-Force controls. Verify the header or operator plates and harness before treating as a drop-in.

    Documented on the 2000/3000-class Dura-Glide control record and DCUSA 2000/3000 notes. 5200/5300 research index mentions the same MC521/iQ split as historical catalog language — photograph the header plate.

    Also listed as R185000SL.

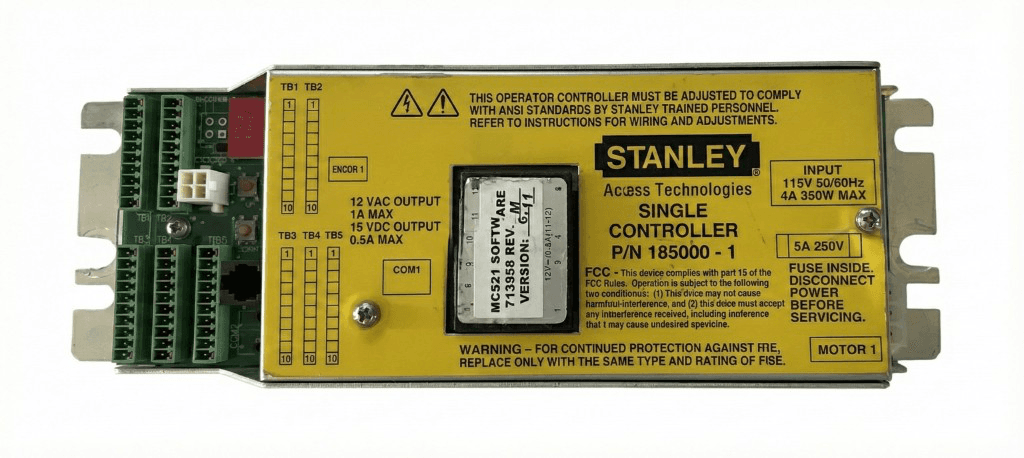

  • Stanley Access Technologies 185000-1 MC521 Classic Single Controller
    185000-1

    MC521 Classic Single Controller

    MC521 Classic single (yellow face)

    Controls · MC521 Classic single

    Identification

    Yellow-face single-motor controller, face P/N 185000-1. Not interchangeable with dual 185000 from a title match.

    Do not confuse with: Not dual 185000; not MC521 Pro; not an iQ board.

    Also documented with: Dura-Glide 2000/3000 · Compatibility not implied

    Source · AutoDoor Atlas field photo

    Sources & notes

    AutoDoor Atlas field photo: Original AutoDoor Atlas photograph of the labeled assembly. Face P/N and generation notes from owner field identification of Dura-Glide / Magic-Force controls. Verify the header or operator plates and harness before treating as a drop-in.

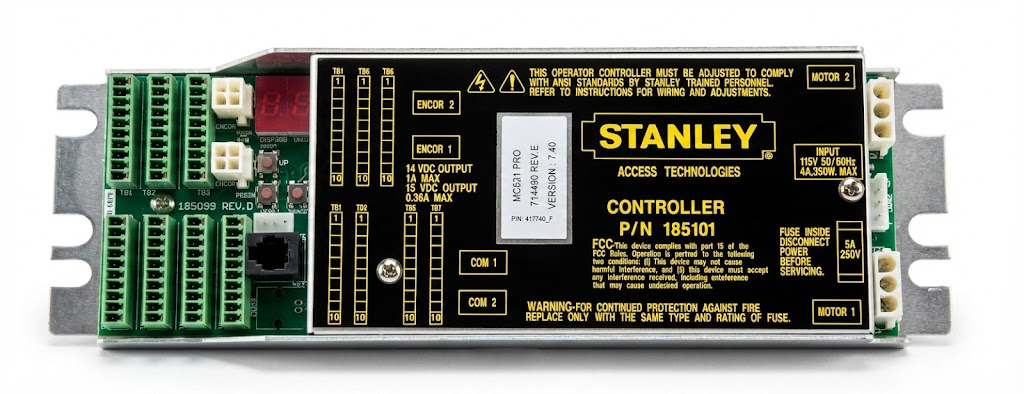

  • Stanley Access Technologies 185101 MC521 Pro Dual Controller
    185101

    MC521 Pro Dual Controller

    MC521 Pro dual (black face)

    Controls · MC521 Pro dual

    Identification

    Black-face dual controller, face P/N 185101. Software sticker example: 714490 / version 7.40. Classic and Pro are not drop-in swaps from a title match.

    Do not confuse with: Not Pro single 185101-1; not Classic 185000; not iQ 1000459.

    Also documented with: Dura-Glide 2000/3000 · Compatibility not implied

    Source · AutoDoor Atlas field photo

    Sources & notes

    AutoDoor Atlas field photo: Original AutoDoor Atlas photograph of the labeled assembly. Face P/N and generation notes from owner field identification of Dura-Glide / Magic-Force controls. Verify the header or operator plates and harness before treating as a drop-in.

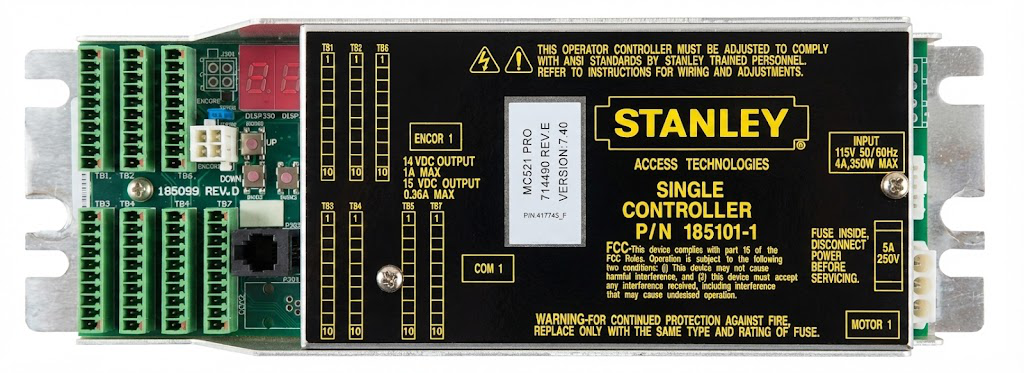

  • Stanley Access Technologies 185101-1 MC521 Pro Single Controller
    185101-1

    MC521 Pro Single Controller

    MC521 Pro single (black face)

    Controls · MC521 Pro single

    Identification

    Black-face single-motor controller, face P/N 185101-1. Not interchangeable with Pro dual 185101 from a title match.

    Do not confuse with: Not Pro dual 185101; not Classic 185000; not an iQ board.

    Also documented with: Dura-Glide 2000/3000 · Compatibility not implied

    Source · AutoDoor Atlas field photo

    Sources & notes

    AutoDoor Atlas field photo: Original AutoDoor Atlas photograph of the labeled assembly. Face P/N and generation notes from owner field identification of Dura-Glide / Magic-Force controls. Verify the header or operator plates and harness before treating as a drop-in.

  • 314321

    iQ Controller Dual

    iQ dual controller kit

    Controls · iQ dual kit

    Do not confuse with: Not an MC521 yellow-face or Pro board; not a single iQ 1000459-1.

    Source conflict

    owner-supplied 5200/5300 list includes 314321 as iQ Controller Dual. The 2024 Stanley/Allegion parts-book research index also lists 314321 as the iQ controller dual kit for Dura-Glide 2000/3000 headers. The DuraFit Telescopic header list (2026-08-23) lists the same kit as KIT-CONTROLLER-iQ-DUAL-RPC. Treat as a shared iQ dual-kit identity until a source splits it by header generation. Photograph the header plate and the controller face PN.

    Also documented with: Dura-Glide 2000/3000, DuraFit Telescopic · Compatibility not implied

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Also appears in the project research index of the Stanley/Allegion Replacement Parts Book (Oct 2024) and/or DCUSA notes — PDFs are not hosted here. Verify header/operator plates; do not treat a number match as drop-in fitment.

Motors & Gearboxes

  • 314326

    iQ Telescopic Motor & Gear Box

    iQ telescopic motor/gearbox

    Motors & Gearboxes

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

    Owner-supplied under Dura-Glide 5200/5300 only. The DuraFit Telescopic header list uses motor/gearbox 1000546, not 314326. Telescopic motor vs DuraFit package identity must be verified on the header plate.

  • 515801

    DG5000 Motor Assembly with Gear

    DG5000 motor/gear assembly

    Motors & Gearboxes

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

Encoders

  • Stanley Access Technologies 314327 iQ Encoder & Magnet Kit
    314327

    iQ Encoder & Magnet Kit

    iQ encoder/magnet

    Encoders

    Do not confuse with: Not the main operator controller.

    Also documented with: Magic-Force / M-Force, Dura-Glide 2000/3000, Bifold, DuraFit Telescopic · Compatibility not implied

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Also appears in the project research index of the Stanley/Allegion Replacement Parts Book (Oct 2024) and/or DCUSA notes — PDFs are not hosted here. Verify header/operator plates; do not treat a number match as drop-in fitment.

    Shared iQ-generation encoder kit. Listed on the 2000/3000 parts-book index, the owner 5200/5300 list, and the DuraFit Telescopic header list (KIT, ENCODER-MAGNET-iQ-RPC) — photograph the header model. On Magic-Force, pair with operator 314309 (white-face / higher-resolution) and iQ controllers — not pre-iQ operator 313852 black-face encoders. Verify operator or header generation before ordering.

Additional listed components

Motors & Gearboxes

  • 313506

    Gear Reducer Assembly

    Motors & Gearboxes · gear reducer

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

Power / UPS

  • 170072

    UPS replacement battery

    Power / UPS

    Do not confuse with: Battery only — not the UPS chassis.

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

  • 313959

    UPS

    header UPS

    Power / UPS

    Also documented with: Dura-Glide 2000/3000 · Compatibility not implied

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Also appears in the project research index of the Stanley/Allegion Replacement Parts Book (Oct 2024) and/or DCUSA notes — PDFs are not hosted here. Verify header/operator plates; do not treat a number match as drop-in fitment.

    Also listed in the 2000/3000 research index as UPS 313959. Shared power accessory identity — verify the installed UPS label, not the family name in a title.

Sensors / Activation

  • 700447

    Optex X-Zone ST

    X-Zone ST

    Sensors / Activation

    Do not confuse with: Activation sensor — not the operator controller.

    Also documented with: DuraFit Telescopic · Compatibility not implied

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

    Listed on the owner 5200/5300 list and the DuraFit Telescopic header list as SENSOR-OPTEX X-ZONE ST. Photograph the header family; rain hood 700844 and harness 418012 are separate DuraFit header-list items.

Switches

  • 713080

    One-Way / Reduced-Open rocker switch

    Switches

    Also documented with: DuraFit Telescopic · Compatibility not implied

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

  • 713081

    Power rocker switch

    Switches

    Also documented with: DuraFit Telescopic · Compatibility not implied

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

    Rocker switches appear on the Dura-Glide 5200/5300 owner list and the DuraFit Telescopic header list. Confirm legend, harness, and header cutout; do not treat a number match as drop-in across families.

  • 713082

    Auto / Close / Open rocker switch

    Switches

    Also documented with: DuraFit Telescopic · Compatibility not implied

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

Header & Mechanical

  • 412466

    Plastic 3/8" Drive Pulley

    Header & Mechanical

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

  • 412481

    Belt Clamp Bracket

    Header & Mechanical

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

  • 412497

    Idler Assembly

    Header & Mechanical

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

  • 412498

    Load Wheel Assembly

    Header & Mechanical

    Do not confuse with: Owner-listed 5200/5300 load wheel assembly. Not assumed to be the same as photographed load wheel/roller 414011 unless the installed PN matches.

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

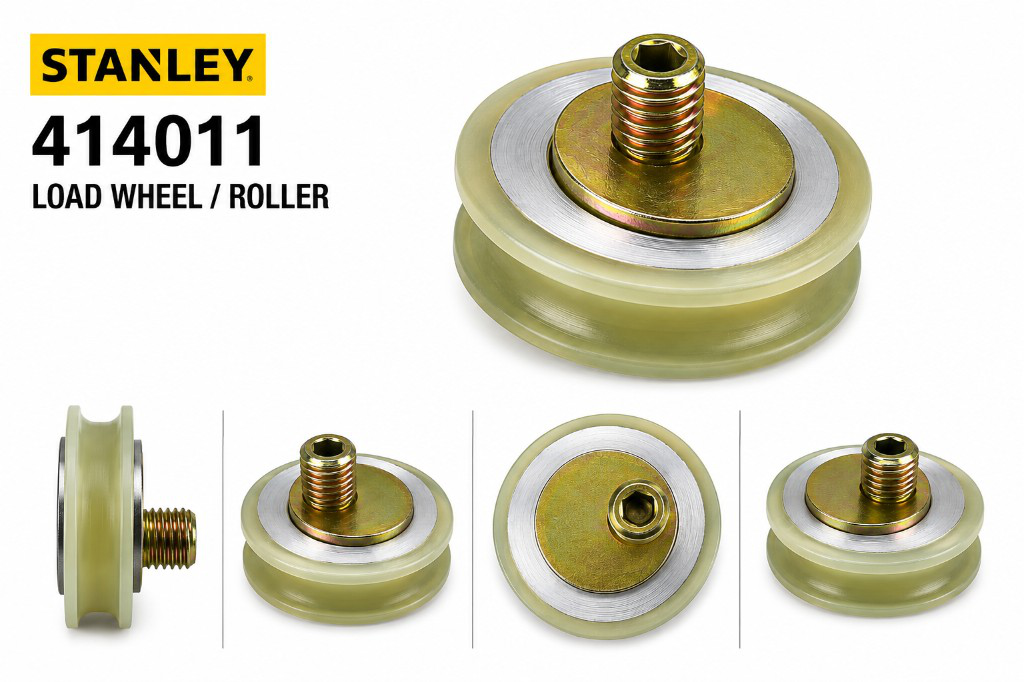

  • Stanley Access Technologies 414011 Load Wheel / Roller
    414011

    Load Wheel / Roller

    eccentric load wheel

    Header & Mechanical

    Identification

    U-groove urethane roller with eccentric hex-socket mounting stud. Photograph the PN and the installed header family — eccentric offset is an identification cue, not proof of interchange.

    Do not confuse with: Not floor bottom guide 517350-1. Not assumed to be owner-listed 5200/5300 load wheel assembly 412498 unless the installed PN matches.

    Also documented with: Dura-Glide 2000/3000 · Compatibility not implied

    Source · AutoDoor Atlas field photo

    Sources & notes

    AutoDoor Atlas field photo: Original AutoDoor Atlas identification photographs of the labeled assembly (2026-08-17). Owner-identified as Stanley 414011 load wheel/roller. Verify the sliding-door family and the PN on the installed wheel; do not treat a number match as drop-in fitment.

    Owner-identified as Stanley 414011 load wheel/roller from original photographs. Sliding-door carriage hardware — this image does not prove 2000/3000 vs 5200/5300 interchange, and does not replace 412498 by appearance alone.

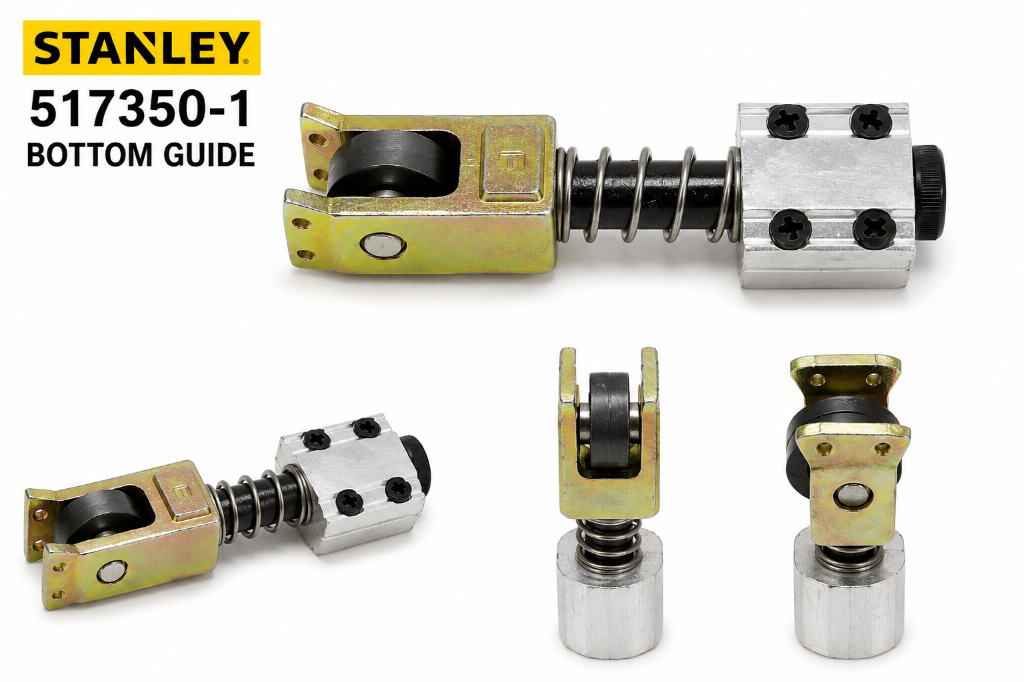

  • Stanley Access Technologies 517350-1 Bottom Guide
    517350-1

    Bottom Guide

    spring-loaded bottom guide

    Header & Mechanical

    Identification

    Spring-loaded floor bottom guide with roller head, coil spring, and four-screw aluminum mounting block. Photograph the stamped/printed PN and the installed header family.

    Do not confuse with: Not a header load-wheel/carriage (412498). Not swing-operator or bifold hardware from this photo alone.

    Also documented with: Dura-Glide 2000/3000 · Compatibility not implied

    Source · AutoDoor Atlas field photo

    Sources & notes

    AutoDoor Atlas field photo: Original AutoDoor Atlas identification photographs of the labeled assembly (2026-08-17). Owner-identified as Stanley 517350-1 bottom guide. Verify the sliding-door family on the opening; do not treat a number match as drop-in fitment.

    Owner-identified as Stanley 517350-1 bottom guide from original photographs. Sliding-door floor hardware — this image does not prove 2000/3000 vs 5200/5300 interchange. Verify the header family and floor-track style before ordering.

    Also listed as 517350.

  • 605521

    Bumper Stop & Screw

    Header & Mechanical

    Identification

    DuraFit Telescopic header list item 26 is BUMPER STOP ASSY 605521. Short bumper 605521-1 is a separate DuraFit header-list SKU.

    Also documented with: DuraFit Telescopic · Compatibility not implied

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

  • 711709

    RH Bumper Stop

    Header & Mechanical

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

  • 711710

    LH Bumper Stop

    Header & Mechanical

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

  • 712750

    3/8" Long Timing Belt

    3/8 timing belt

    Header & Mechanical

    Identification

    Belt length must be verified against the installed header — do not assume one belt fits 5200, 5300, and DuraFit. The DuraFit header list marks 712750 as A/R (must specify length).

    Also documented with: DuraFit Telescopic · Compatibility not implied

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

Identification

Aliases
  • Dura-Glide 5200 (oem)
  • Dura-Glide 5300 (oem)
  • DG5200 (common_name)
  • DG5300 (common_name)
  • Dura Glide 5200 (common_name)
  • Dura Glide 5300 (common_name)
  • Stanley 5200 sliding door (common_name)
  • Stanley 5300 sliding door (common_name)
Labels & connectors to capture
  • Header or cover plate reading Dura-Glide 5200 or 5300 (not only “Dura-Glide”)
  • Controller face PN: iQ dual 314321 vs MC521 Classic/Pro vs iQ single 1000459-1
  • Encoder kit 314327 vs older encoder housings
  • Motor/gear identity: 515801 DG5000 assembly vs 314326 iQ telescopic motor/gearbox vs 313506 gear reducer
  • Belt, idler, pulley, and bumper-stop numbers on the installed hardware
  • Bottom guide identity: 517350-1 spring-loaded roller guide vs other floor-guide styles
  • Load wheel identity: 414011 U-groove eccentric roller vs owner-listed 412498 assembly
Common mistaken names
  • Dura-Glide 2000/3000 packages titled as 5200/5300 (or the reverse)
  • DuraFit telescopic packages assumed to share 314326 because the name says telescopic
  • Generic “Stanley sliding door board” without a header model
Revision notesShow

5200 and 5300 share a family page because field lists and aftermarket catalogs treat them together, but belt length, bumper hand, and header hardware still differ by opening. iQ-era kits (314321 dual controller, 314327 encoder) appear on the owner 5200/5300 list and also on the 2000/3000 parts-book index — photograph both the header model and the controller face PN. Do not assume a 2000/3000 motor/gearbox is a 5200/5300 match.

Compatibility

Commercial sliding automatic entrances in the Stanley Dura-Glide 5200 and 5300 families. Distinct from Dura-Glide 2000/3000, DuraFit telescopic, DT, GreenStar, SLH, and Dura-Max 5400.

Voltage: Package-specific. Read the installed controller and UPS labels; do not copy 2000/3000 voltage notes onto a 5200/5300 opening from a photo of a different header.

Stanley Dura-Glide 5200 / 5300 sliding packages (matching generation)

Compatible with caveats

Component numbers on this page are listed for this family in owner parts material. Confirm header model, controller generation, belt, and hand of bumper stops on the opening.

Owner-supplied 5200/5300 identification list (2026-08-15); research index cites Stanley/Allegion parts book and DCUSA DG 5200/5300 notes. PDFs not hosted.

Stanley Dura-Glide 2000 / 3000 sliding packages

Unknown / verify

Do not treat 5200/5300 hardware as a drop-in for 2000/3000 from the Dura-Glide name alone. Some iQ kit numbers appear on both lists — that is a source conflict to verify, not automatic interchange.

Research index lists 314321 / 314327 / 313959 on 2000/3000; owner list places the same numbers on 5200/5300. Left unknown pending a source that splits by header.

Related systems & parts

Curated cross-links for identification context — not automatic compatibility claims.

Buying & Selling

No verified sold-comparable range published yet

Condition and value notesShow

  • Used — untested

    No verified sold-comparable table is published on this page. Asking prices, distributor list, and sold comps are different data kinds and are not inferred from each other.

    Qualitative guidance only — numeric value fields left null until a verified sold or list source is recorded.

  • Dead core / unknown working

    Unlabeled or mixed-generation cores are hard to place. Readable family plates and encoder/controller generation are the first filter.

    Owner field practice; no numeric core schedule published here.

Marketplace / supplier links

Seller guidanceShow

Photograph

  • Header or cover plate showing 5200 or 5300
  • Controller face PN and software sticker
  • Motor/gearbox and encoder in place
  • Belt, pulley, idler, and bumper-stop close-ups if those are the items for sale

Disclose

  • 5200 vs 5300 when the plate is readable
  • iQ vs MC521 vs unknown controller generation
  • Whether the lot is a single component or a mixed header teardown

Title tips

  • Stanley + Dura-Glide + 5200 or 5300 + component PN (314321, 515801, 314327, etc.)
  • Do not title as 2000/3000 unless that is the plate
Buyer guidanceShow

Common mistakes

  • Buying a 2000/3000 iQ kit from a 5200 title, or the reverse, without header photos
  • Assuming 314326 belongs to DuraFit because it is a telescopic motor/gearbox — DuraFit header list uses 1000546

Revision differences

  • iQ dual 314321 vs MC521 Classic/Pro vs iQ single — photograph the face label
  • 515801 DG5000 motor/gear vs 314326 iQ telescopic motor/gearbox vs 313506 reducer — these are different assemblies on the owner list

Verify before purchase

  • Readable 5200 or 5300 header identification in listing photos
  • Component PN matches the part in the photo, not only the title
  • Belt, bumper hand (711709 RH / 711710 LH), and pulley size if those SKUs are the buy
  • Return path if the header generation is wrong

Used vs rebuilt: what buyers should verify

Sources & Field Notes

Last reviewed 2026-08-15. Claims on this page are curated field/resale intelligence. We link official public pages only and do not host copyrighted manuals.

Sources & provenanceShow
Curated field notesShow

Dura-Glide 5200/5300 is a separate sliding family from the more common 2000/3000 packages. Marketplace titles that only say “Dura-Glide” or “Stanley slider” collapse those generations into one pile. This page exists so technicians can match header plates (5200 vs 5300 vs 2000/3000), then use the listed component numbers as search cues — not as a drop-in BOM. Owner-supplied PNs are recorded as listed for this family in the referenced parts material; revision and configuration still have to be verified on the opening. Research index notes that DCUSA treated 5200/5300 with the same MC521/iQ control split as 2000/3000; that is historical catalog language, not proof that every 5200 header takes a 2000 iQ kit.

This is not a repair procedure and not manufacturer-authorized service documentation.

Request part ID · Parts directory · Opening / Panel Calculator · Handing / Configuration Helper · Control & Motor Reference
